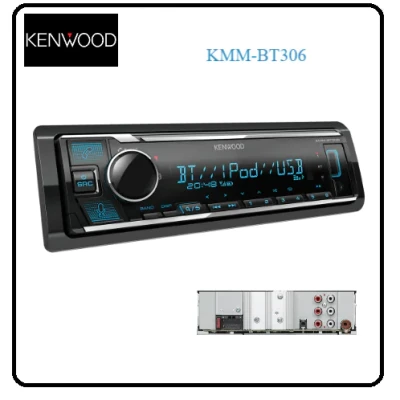

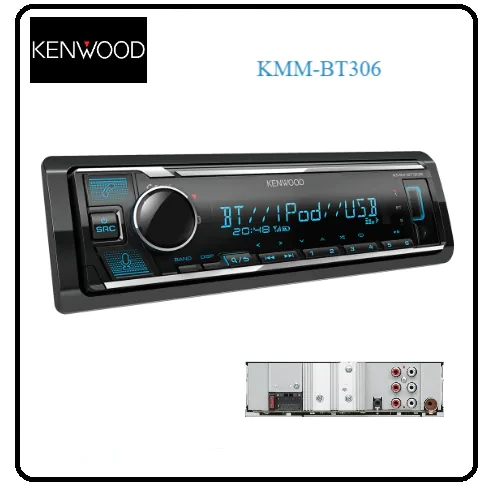

KMM-BT306
Digital Media Receiver with Bluetooth built-in, Spotify & Amazon Alexa ready.
Digital Media Receiver | USB | Bluetooth HF & A2DP | Amazon Alexa app ready | iPhone/iPod | 3 Preouts (2,5V) | Short Body.
Key Features
| Bluetooth handsfree & audio streaming built-in |
| MP3/WMA/AAC/WAV/FLAC playback |
| DSP, DTA & 13-band EQ built-in |
| KENWOOD Remote app ready |
| Music Mix app ready |
| Amazon Alexa ready |
| 13 digits, 1,5 Line Wide LCD Display |
| Variable Colour Illumination |
| English/Russian/Spanish/French&German GUI language |
| 3 RCA (front + rear + sub) Preouts (2,5V) |
General Features
Display Features
| Display Type |
Liquid Crystal Display (LCD) |
| Display Layout |
2 line text + custom icons |
| Vertical Aligment Liquid Crystal Display |
Yes |
| Display Illumination |
Variable by RGB LED |
| Dimmer Control |
Manual / Set by Timer |
| Brightness control |
0 - 31 steps |
| Demo Mode |
Yes |
| Menu text in selectable language |
English(default) / Spanish / French / German / Russian |
Cosmetics features
| Dress plate |
Piano Black |
| Preset key finish |
Piano Black |
| Escutcheon finish |
Piano Black |
| Volume & operation knob or wheel |
Transparant Lighting & Chrome Finished Ring |
| Triangle Illumination |
Red LED |
| Front terminals dust cover |
Yes |
| Key illumination |
Variable by RGB LED |
| Illuminated front USB port |
Variable by RGB LED |
| Brightness Control (Key) |
0 - 31 step |
| Dimmer Control (Key) |
Manual / Set by Timer |
| Variable color illumination |
Yes |
| Color Zone Concept |
2 zone colour control |
| Brightness zone concept |
2 zone brightness control |
| Chrome-finished accents |
Volume knod & faceplate |
Tuner Features
Playable Audio File
USB Features
| USB terminal |
Yes, Front with dust cover |
| USB Type |
2.0 High speed |
| MP3, WMA, AAC, WAV, FLAC playback |
Yes |
| Repeat/Scan/Random search |
Yes |
| Repeat / Random Play |
Yes |
| Direct search |
Yes |
| Resume play |
Yes |
| Time code display |
Yes |
| 1,5A Smartphone Quick Charge |
Yes |
iPod Features
Audio Features
| Maximum Output Power |
50W x 4 |
| MOSFET Power IC |
Yes |
| Auxiliary Type |
Mini-jack, front panel |
| Pre-out |
3 RCA |
| Pre-out Output Level |
2.5V |
| Subwoofer Reference Level Adj. |
Yes |
| 2-Way X'over network |
Yes |
| 3-Way x'over (bi-amp connection) |
Yes |
| Tone Control / Easy EQ |
13 band, 8 presets |
| Balance/Fader/Loudness Control |
Yes |
| Bass Boost Circuit |
Off/+1/+2/+3/+4/+5 |
| Att.(-20dB) with smooth Volume Return |
Yes |
| Easy 3-band EQ mode |
Yes |
| Graphic Equalizer + Preset |
13-Bands Graphic Equalizer with 8 Presets. |
| Digital Sound Processor (DSP) Built-in |
Yes |
| Digital Time Aligment (DTA) |
Yes |
| Low- & High-pass Filter |
Yes |
| Speaker Size Control |
Yes, Front/rear/subwoofer independently |
| Kenwood Sound Reconstruction |
Yes |
| Sound Reconstruction |
Yes |
| Space Enhancer |
Yes |
| Realizer |
Yes |
| Stage EQ |
Yes |
| Drive EQ |
Yes |
Bluetooth General Features
Connectivity
Tuner Specifications
| FM range: 87.5Mhz - 108MHz (50Khz step) |
Yes |
| FM Usable Sensitivity |
0.56μV/75ohm (S/N 30dBf) |
| FM Quieting Sensitivity |
1.58μV/75ohm (S/N 46dBf) |
| FM Frequency Response |
30Hz ~ 15kHz (± 3dB) |
| FM Signal to noise ratio (Mono) |
68dB |
| FM Stereo Separation (1kHz) |
40dB |
| MW range: 531kHz - 1611kHz (9kHz step) |
Yes |
| MW Usable Sensitivity |
28.5μV |
| LW range: 153kHz - 279kHz (9kHz step) |
Yes |
| LW Usable Sensitivity |
45μV |
Codec Specs
| MP3 Format |
MPEG 1/2 Audio Layer 3-Files |
| WMA Format |
in accordance with Windows Media Audio |
| AAC Format |
AAC-LC “.aac”(CD&USB) and ".m4a"(USB) files |
| WAV Format |
RIFF waveform Audio Format (only for LinearPCM) |
| FLAC Format |
FLAC files (up to 96kHz/24bit) |
USB Specifications
| USB Version compatibility |
USB 1.1 / 2.0 full speed |
| File System |
FAT 32 / 16 / 12 |
| Maximum Supply current |
1500mA |
| D/A Converter |
24bit |
| MP3 Decode |
Compliant with MPEG-1/2 Audio Layer-3 |
| WMA Decode |
Compliant with Windows Media Audio |
| AAC Decode |
"m4a" & "aac" file encoded by AAC-LC format |
| WAV Decode |
Linear - PCM Files |
| flac Decode |
FLAC files up to 96kHz/24bit |
Audio Specifications
| Maximum Power |
50W x 4 |
| Output Power (DIN45324,+B=14.4v) |
22W x 4 |
| Preout Level |
2500mV / 10kOhm, |
| Preout Impedance |
≤ 600Ohm |
| Speaker Impedance |
4Ohm ~ 8Ohm |
| AUX Frequency Response |
20Hz ~ 20kHz (±1dB) |
| AUX Maximum Input Voltage |
1000mV |
| AUX Input Impedance |
30kOhm |
DSP Specifications
| Frequency band - Front |
62.5Hz ~ 16kHz |
| Equalizer Gain |
–9db ~ +9db |
| Q Control |
0.25/ 0.50/ 1.00/ 2.00 |
| High Pass Filter frequency |
Through/50 ~ 220 (Hz) |
| High Pass Filter Slope |
-12/-18/-24 dB/Oct |
| Low Pass Filter frequency |
50 ~ 120(Hz)/Through |
| Low Pass Filter Slope |
-12/-18/-24 dB/Oct |
| Time Alignment |
0 — 610cm(2 cm step) |
| Car type control |
► OFF
► COMPACT
► Full SIZE CAR
► WAGON
► MINIVAN
► SUV
► MINIVAN LONG |
| Equalizer Type |
Graphic |
| Frequency band |
13 bands |
Bluetooth specifications
| Technology |
Bluetooth V4.2 |
| Frequency |
2.402 - 2.48 GHz |
| Output power |
+4dBm(max), 0dBm (AVE) power class 2 |
| Maximum range |
Line of sight approx. 10 meter |
| Handsfree profile (HFP) |
Yes |
| Serial port profile (SPP) |
Yes |
| Advanced audio distribution profile (A2DP) |
Yes |
| Audio Codec |
SBC/AAC |
| Audio/Video remote control profile (AVRCP) |
Yes |
| Phonebook access profile (PBAP) |
Yes |
Accessories
| Release keys |
2 pieces |
| Escutcheon |
Yes |
| Installation Sleeve |
Yes |
| DC cord (Mitsumi to ISO) |
15 cm |
| Handsfree Microphone |
with 3 m cable |
General Specifications
| Operating voltage |
14.4V (10.5 ~ 16V Allowable) |
| Maximum Current Consumption |
10A |
| Dark Current Consumption |
Below 1mA |
| Dimensions (WxHxD) |
182 x 53 x 100mm |
| Weight |
600 gr. |
| Operation Temperature Range |
-10°C ~ 60°C |
| Instruction Manuals |
Multi-language quick Guide |
